Block Diagram From State Space - Block Diagrams/Model Building Many real systems that are comprised of several components and feedback loops are given in block diagram form. It can be difficult in some cases to find equivalent system representations and the corresponding state space matrices.. • Block diagrams: A (mathematical) block diagram gives a graphical representation of a mathematical model, and therefore gives good information of the structure of the model, e.g. how subsystems are connected. With block diagrams you can build simulators in graphical simulation tools as SIMULINK and LabVIEW Simulation Module.. The steps taken to reduce the block diagrams are showed at image 4. ( a- d ) . The figure 4 (b) input potentiometer is responsible for collection of functions and creating a backward system connection. In the image 4 (c) all blocks are multiplied together to form an equivalent transfer function ..

However, for a block diagram formulation you will need to completely reformulate the block diagram. This is because the resulting mathematical equations might be very different when expressed in state-space. The block diagram of the buck converter plant will be described using space-state averaging and controlled by block decoupled approach, a space-state control technique.. Block diagram: It is used to represent all types of systems. It can be used, together with transfer functions, to describe the cause and effect relationships throughout the system. State-space-representation: You will study this in an advanced Control Systems Design course. 1.1..

Obtain a state-space model for the system shown in Figure 3-52(a). Solution. First, notice that (as + b)/s2 involves a derivative term. Such a derivative term may be avoided if we modify (as + b)/s2 as Using this modification, the block diagram of Figure 3-52(a). Secondly: Find the Block diagram of state space The following figure shows the block diagram of the state space by Matlab Simulink Step response for the block diagram is shown below. Feedback []. A feedback loop is a common and powerful tool when designing a control system. Feedback loops take the system output into consideration, which enables the system to adjust its performance to meet a desired output response..

These mathematical equations can be represented as shown below in a block diagram form that preserves the one-to-one correspondence between the 2D space vectors of the equations and the vectorized signals (of width 2) appearing in the Simulink representation. It is significant to point out that flux linkages are selected as state. plex diagrams. The general procedure to obtain the ﬁnal state-space system remains. same: Stack the states of all subsystems in a tall vector. x and compute ˙ using the state and output equations of the individual blocks. SYSTEM DECOMPOSITION. Block diagrams are also useful to represent complex systems as the interconnection simple blocks.. EE 380 Fall 2014 Lecture 3. Example 1: Mechanical System • Represent the mechanical system using an ODE, transfer function, block diagram, all-integrator block diagram, and state-space model.

State space analysis is typically used to develop a small signal model of a converter and then depending on the type of control scheme used, the small signal model of converter is modified to facilitate the design of the compensation network.. Series State Space If we have two systems in series (say system F and system G), where the output of F is the input to system G, we can write out the state-space equations for.

Implementing a Finite State Machine in VHDL Block diagram representation of logic created for a state machine
An Interactive Simulation System for Analysis and Synthesis of ... An Interactive Simulation System for Analysis and Synthesis of Digital Control Systems
Discrete-time systems analysis
Solved: Given A Discrete-time System Block Diagram Below O ... Question: Given a discrete-time system block diagram below Obtain the following state space equations base.
Model of the ventriloquism aftereffect. A, Block diagram summarizing ... A, Block diagram summarizing the state-space model, along with the double exponential and power models of the ventriloquism aftereffect.
Conversion Between State Space and Transfer Function Representations ... Conversion Between State Space and Transfer Function Representations in Linear Systems – I
For The Block Diagram Shown Below, Obtain Figure 3... | Chegg.com For the block diagram shown below, obtain Figure
State Space Realizations | Matrix Theory | Matrix (Mathematics)
state space representation - ppt download 4 Reduction Rules of Block Diagrams
Solved: Translate The Above Block Diagram To State Space E ... Question: Translate the above block diagram to state space equation, find A, B and C: X = AX + Bu y = CX .
Solved: The Block Diagram Of A Control System Is Given Bel ... Question: The block diagram of a control system is given below. Obtain a state-space representation of the.

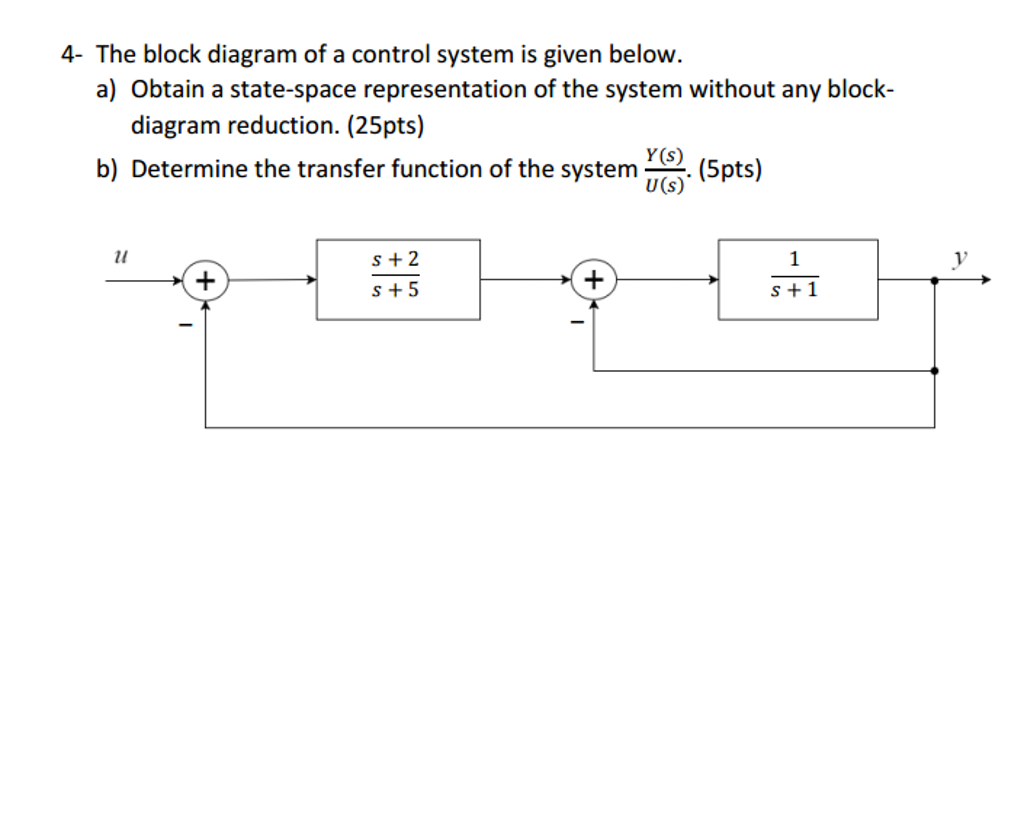

Solved: 4- The Block Diagram Of A Control System Is Given ... 4- The block diagram of a control system is given below. a) Obtain
